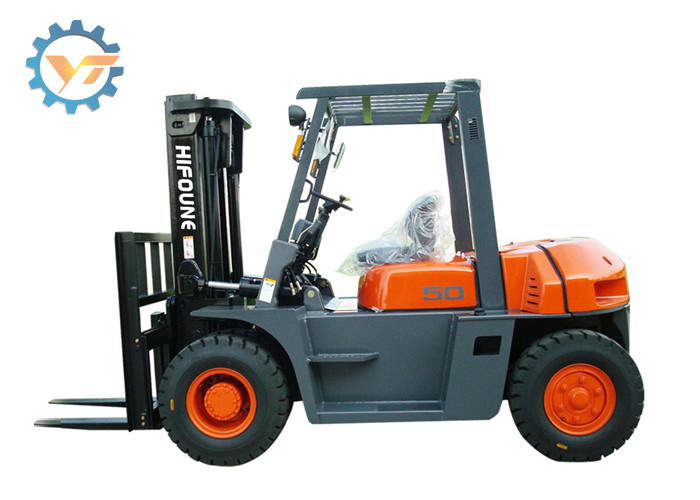

5 Ton Capacity FD50 Warehouse Lifting Equipment Forklift Material Handling

Product Details:
Place of Origin: China (Mainland)
Brand Name: HIFOUNE
Certification: ISO9001:2008/CE
Model Number: FD50
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Export Packaging
Delivery Time: 7-30 Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 250 Units per Month

Detail Information

Power Source: Diesel Engine Weight: 8050kg
Tyre Number: 4/2 Tyre Size: 8.25×15-14PR/8.25×15-14PR
Free Lifting Height: 205mm Turning Radius: 3250mm
Overall Dimensions: 3455X1995X2450mm Fork Size: 1220X150X60mm
High Light:

warehouse material handling equipment

,

warehouse heavy equipment

Product Description

Diesel Engine Forklift Truck 5 Ton FD50 Hydraulic



1. Advantages / Features



HIGH QUALITY

  • Optional allocation of a variety of high-quality power, equipped with engine electronic control technology, can protect the engine in many ways, to ensure the safe operation of the engine.
  • Load sensing and dual pump hydraulic system technology are adopted to improve the operation efficiency and reduce the overall energy consumption.
  • The super large capacity aluminum tube belt radiator and optimized heat dissipation channel further improve the heat dissipation capacity of the vehicle.

HIGH SECURITY

  • Equipped with wide-field portal frame system and wide-angle rearview mirror, to provide a good working field of vision for driver.
  • All car LED lights, high brightness, long life, energy saving and environmental protection.

HIGH COMFORT

  • Standard diameter 300mm steering wheel, assist system, lightness control, reduce driver fatigue.
  • It adopts optimized cover system and hood locking mechanism. The hood is flexible and convenient to maintain.
  • Spacious control space, comfortable seats, enjoy the pleasure of riding.

RICH OPTIONS

  • ISUZU engine, high exhaust device, air prefilter, fireproof cap, solid tire, two stage free lift mast, three stage free lift mast , widening fork frame, fork sleeve, side shifter, paper roll clamp, bale clamp, carton clamp, block clamp, rotators, drum clamp, push-pull, etc.



2. Technical Parameters



MAIN TECHNICAL PARAMETERS



Model UNIT FD50
Specifications Power Unit   Diesel
Operator Type   Driver/seat
Transmission Box Type   Electronic hydraulic transmisson
Rated Capacity kg 5000
Load Center mm 500
Max.Lifting Height mm 3000
Tyre Type   Pneumatic Tyre
Tyre Number (Front/Rear)   4/2
Tyre Size (Front/Rear)   8.25×15-14PR/8.25×15-14PR
Performance

Lifting Speed

(Loaded/Unloaded)

mm/s 500/550

Lowering Speed

(Loaded/Unloaded)

mm/s 500/450

Travelling Speed

(Loaded/Unloaded)

km/h 26/30

Max.Gradeability

(Loaded)

% 42

Max.Drawbar Pull

(Loaded)

KG 5500

Mast Tilting Angle

(Fwd/Bwd)

deg 6/12
Free Lifting Height mm 205
Turning Radius mm 3250
Dimensions Overall length (without fork) mm 3455
Overall Width mm 1995
Overhead Guard Height mm 2450
Fork Size (LxWxT) mm 1220x150x60
Mast Height (Fork lowered) mm 2500
Battery (Voltage/Capacity) V/Ah 2×12/90
Truck Weight kg 8050
Fuel Tank Capacity L 140
Engine Brand   ISUZU MITSUBISH CHAOCHAI
Model   6BG1 S6S-T 6102
Rated Power kw/rpm 82.3/2000 67.6/2300 80.8/250
Rated torque n-m/rpm 418/1500 293/1700 354/1650
Number of cylinder   6 6 6
Displacement   6.49 4.99 5.78





3. Application



Our high quality forklift is widely used in the port,wharf,industrial and mining enterprised,station,warehouse and others.It's suitable to operate on soft soils ,grass, normal terrain ,mud and many other rugged surfaces.



4. Our Advantages



  • World-class quality

  • Factory sale directly with reasonable price

  • Flexible payment terms including T/T,L/C and so on

  • Fast delivery within 30 days after contract established

  • Professional sales team,quality inspection and report, maritime logistics guidance

  • After-sale services:video technical support,24h online support
