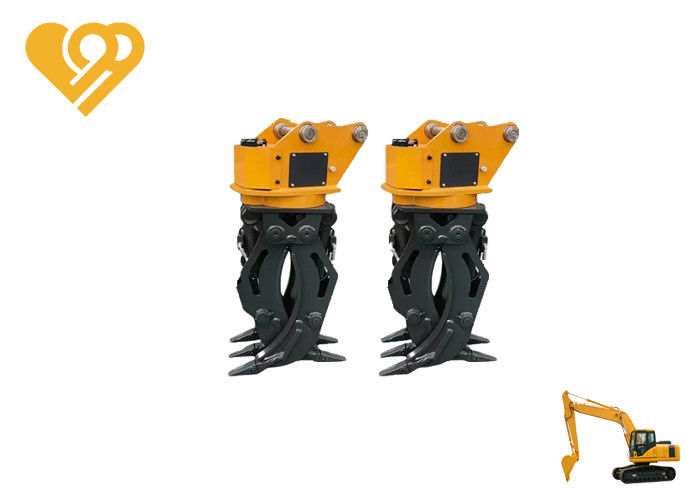

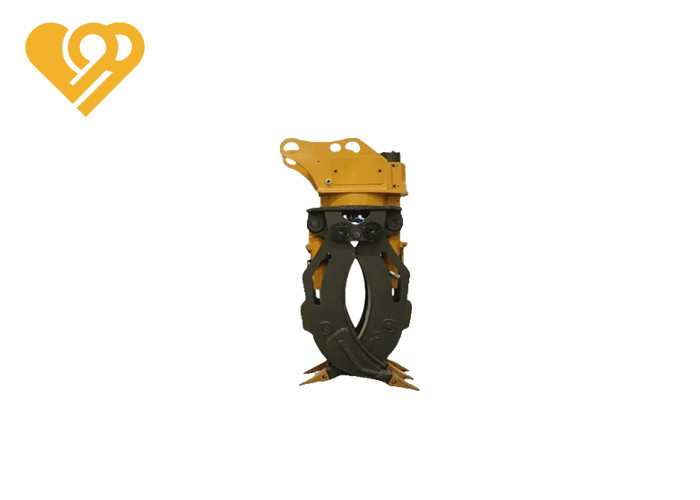

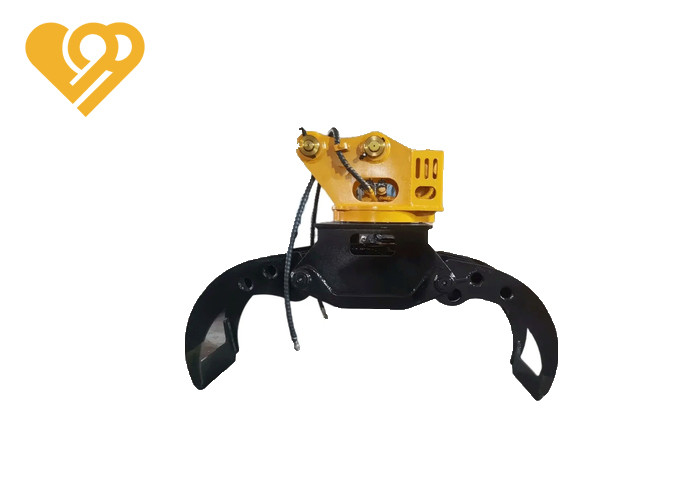

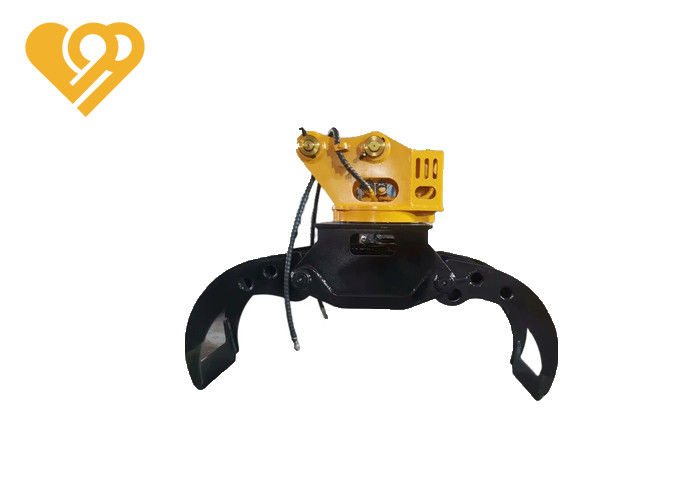

Excavator Demolition Grapple General Purpose Tool With Endless Slewing Device

Product Details:
Place of Origin: China
Brand Name: YT
Model Number: Almost All Excavator Models
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Packaging
Delivery Time: 7-30 Days
Payment Terms: L/C, T/T
Supply Ability: 10000 PCS/Month

Detail Information

Suitable Excavator: 1.2-100 Tons Colour: Yellow Or Customer Required
Warranty Time: 14 Months Material: 20CrMo Alloy Steel
Place Of Origin: Fujian, China Brand Name: YT
OEM: Available Certification: ISO9001-9002
High Light:

excavator rock bucket

,

excavator rock grapple

Product Description

Sorting & Demolition Grapple Top Quality Bulldozer & Excavator Spare Part Attachment Grapple Sorting Demolition Grapple



Demolition & Sorting Grapples are a great general purpose tool for handling all types of loose debris and lodged heavy material. They are designed for the most rigorous applications, including demolition, scrap and waste handling, especially with the requirements of demolition and recycling in mind. Clamshell buckets are used for sorting, loading and demolition itself. Equipped with an endless slewing device, they are extremely effective, universally applicable attachments.



1. Sorting & Demolition Grapple Advantages / Features



* Solid components, maximum protection of the hydraulic parts.

* Optimum own weight.

* Easy maintenance and service-friendly.

* Sealed bearing points.

* Long lubrication interval, bushings with dust seal and oil catcher.

* The endless hydraulic slewing device, efficient in use because of the rotating capabilities, and, when fully opened.

* The evenly distributed power balance in the grapples.

* 360-degree rotation.

* High clamping forces.

* High- torque rotation motor.

* High closing force.

* Lightweight construction.

* Highly sensitive in sorting work.

* Different tine shapes for individual applications.



2. How to Choose the Right Model?



            Sorting & Demolition Grapple Specification Data reference



MODEL YTKL03 YTKL04 YTKL06 YTKL08 YTKL10 YTKL14 YTKL20
Weight (kg) 320 390 740 1380 1700 1900 2100
Max jaw opening (m/m) 1300 1400 1800 2300 2500 2500 2700
Oil pressure (kg/cm2) 110-140 120-160 150-170 160-180 160-180 180-200 180-200
Set up pressure (kg/cm2) 170 180 190 200 210 250 250
Operating flux (l/min) 30-55 50-100 90-110 100-140 130-170 200-250 250-320
Cylinder Volume (ton) 4.0 x 2 4.5 x 2 8.0 x 2 9.7 x 2 12 x 2 12 x 2 14 x 2
Suitable excavator (ton) 4-6 7-11 12-16 17-23 24-30 31-40 41-50

The Models Above Are Just For Reference, Many Models We Can't List Here. We Can Supply More Products As Your Requirement. Please Feel Free To Send Us Your Inquiry Or Email If You Have Any Requirements.



3. Suitable Excavators



Cat/CASE/DAEWOO/HITACHI/HYDUNDAI/KOMATSU/SAMSUNG// KOBELCO/SANY/  SUMITOMO/ KATO/DOOSAN/ ATLAS/ LOVOL/ SUNWARD/ IHI



4. Our Advantages



* World-Class Quality

* Factory Sale Directly With Reasonable Price

* 35 Years' Experience In Excavator & Bulldozer Spare Parts Manufacturing

* Flexible Payment Terms Including T/T, L/C And So On

* Fast Delivery Within 30 Days After Contract Established

* Professional Sales Team, Quality Inspection, And Report, Maritime Logistics Guidance

* After-Sale Service: Video Technical Support, 24h Online Support
