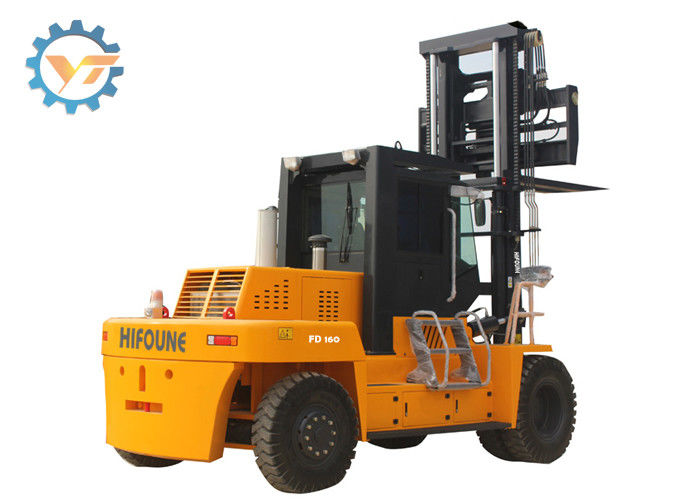

FD160 Warehouse Lifting Equipment Forklift Machine With Diesel Engine

Product Details:
Place of Origin: China (Mainland)
Brand Name: HIFOUNE
Model Number: FD160
Certifiion: ISO9001:2008/CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Export Packaging
Delivery Time: 7-30 Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 250 Units per Month

Detail Information

Power Source: Diesel Engine Max Lifting Height: 3500mm
Operator Type: Driver/Seat Tyre Type: Pneumatic Tyre
Tyre Number: 4/2 Max.Gradeability: 20%
Overall Dimensions: 7640X2750X3365mm Fork Size: 1800X180X90mm
High Light:

warehouse material handling equipment


warehouse heavy equipment

Product Description

Diesel Engine Forklift Truck FD160 Hydraulic


1. Advantages / Features


  • Adopt Cummins, Weichai, Yuchai turbocharging engine, powerful, energy conservation, environmental protection, satisfies the requirement of high efficiency operation.
  • Use Hangchi, Sanchi planet type hydraulic power shift transmission, big traction in combined operating condition, the transmission system more reliable.
  • Adopt double turbine hydraulic torque converter, stepless speed change, single lever control for the speed changing, easier for operation.
  • Variable speed control valve matched with neutral starter, the machine start more secure.
  • Front axle adopt heavy duty type driving axle, enlarge size of axle housing, hub and bearing, spiral bevel gear and wheel planetary wheel deceleration increasing twist, steel structure bridge shell support, increase the load capacity and service life.
  • Rear axle by transverse hydraulic cylinder type steering, steering axle has compact structure, transmission angle is 70.5 °, help to reduce the resistance and reduce tire wear and improve the driving comfort.
  • Using four heavy caliper disc brake, thicken brake disc, the rear air tank, 18 times braking pressure strength ratio, heat dissipation faster, reliable and safe operation.
  • Adopt double pump confluence working hydraulic system, greatly reduce fuel consumption, energy consumption. Hydraulic system equipped with oil radiator and back pressure protection device, ensure the machine heat balance.
  • Using domestic high quality electrical components, maintenance-free battery, the wire resistance of flame retardant materials, reliable and durable. Cabin matched wiht fan, radios, air conditioner, reversing display, can match with weighting machine according to customers’ requirements.
  • Domestiion parts, standardization, cost-effective, parts commonality good easy procurement, daily maintenance is simple and quick.


2. Technical Parameters




Model UNIT FD160
Specifiions Power Unit   Diesel
Operator Type   Driver/seat
Transmission Box Type   Electronic hydraulic transmisson
Rated Capacity t 16
Load Center mm 900
Max.Lifting Height mm 3500
Tyre Type   Pneumatic Tyre
Tyre Number (Front/Rear)   4/2
Tyre Size (Front/Rear)   12-24-18PR/12-24-18PR
Performance Lifting Speed (Loaded/Unloaded) mm/s 250/260
Lowering Speed (Loaded/Unloaded) mm/s 430/330
Travelling Speed (Loaded/Unloaded) km/h 26/30
Max.Gradeability (Loaded) % 20
Max.Drawbar Pull (Loaded) N 15000
Mast Tilting Angle (Fwd/Bwd) deg 6/12
Turning Radius mm 5800
Dimensions Overall length (with fork) mm 7640
Overall Width mm 2750
Overhead Guard Height mm 3365
Fork Size (LxWxT) mm 1800x180x90
Mast Height (Fork lowered) mm 3625
Truck Weight kg 25000
Model   YC6J175-T302 QSB6.7-C130
Rated Power kw/rpm 129/2200 142/2200
Displacement   6.49 6.7



3. Appliion


Our high quality forklift is widely used in airports, ports, docks, stations, warehouses and other big working intensity occasions for loading and unloading, stacking and short-distance transportation.


4. Our Advantages


  • World-class quality

  • Factory sale directly with reasonable price

  • Flexible payment terms including T/T,L/C and so on

  • Fast delivery within 30 days after contract established

  • Professional sales team,quality inspection and report, maritime logistics guidance

  • After-sale services:video technical support,24h online support
