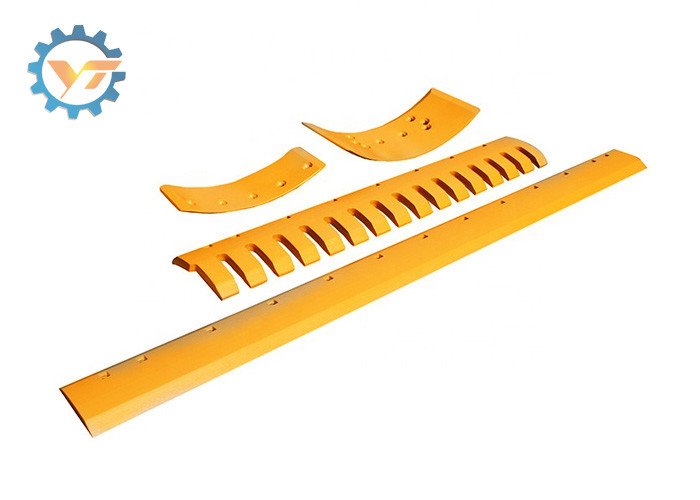

6Y3840 HC45 Bulldozer Replacement Grader Blade

Product Details:
Place of Origin: China
Brand Name: YT
Model Number: For All Series
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Standard Packaging
Delivery Time: 7-30 Days
Payment Terms: L/C, T/T
Supply Ability: 10000 PCS/Month

Detail Information

Material: Q345B/HM500/HM400/HC80/HC45 Dimensions: Standard
Shipment: By Air,Ship Or Express H.S. Code: 84314999
Colour: Yellow Or Customer Required Certification: ISO9001-9002
Stock: Yes Delivery Time: Within 7-30 Days
High Light:

6Y3840 Replacement Grader Blade

,

Bulldozer Replacement Grader Blade

,

HC45 Bulldozer Undercarriage Parts

Product Description

Long Life Wear Parts 6Y3840 Bulldozer Equipment Parts Replacement Grader Blade



Grader Blades 7D1949 Earthmoving Attachments G.E.T. Bulldozer Accessories



We offer a wide selection of blades and side cutters manufactured from several grades of high carbon and boron steel. Many of these products are made from both high carbon and boron steel that are heat-treated and hardened to improve the lifespan while meeting the demanding requirements of earthmoving and mining applications.



1. What is the Grader Blade & Side Cutter?



Grader blade & side cutters are the main work grader devices and other auxiliary devices, complement each other to carry out the soil cutting, scraping, leveling delivery operations, shaping and maintenance of the gravel road, roadbed, topsoil or turf stripping, trenching, scraping slope, leveling. Grader blade & side cutter could help prevent damage as well.



2. Production Processes



6Y3840 HC45 Bulldozer Replacement Grader Blade 0



3. Why Choose Us?



* Through professional quench-tempering processes to guarantee excellent mechanical properties, high strength and superior wear resistance to bending and breakage.

* Hardness 280-320HB for reduced wear and longer life, adding value to your products further to your business by maximizing the durability of your products.

* Optional material with high carbon steel or heat-treated boron steel for different applications.

* Available dimensions for all standard grader blades or customized dimensions,such as 5 feet/6 feet/7 feet/8 feet/11 hole/ 13 hole/15 hole/17 hole.



4. Material parameters





                                      MATERIAL PARAMETERS



Material Code

Material

Type

Hardness

(HRC)

Yielding Strength

(MPa)

Tensile

Strength

(MPa)

Elongation

(%)

Impact

Energy

(J/c㎡)

HM500

Heat-treated

boron steel

46-52 ≥1250 ≥1500 ≥7 ≥40(25℃ KV)
HM450

Welding friendly

material

42-48 ≥850 ≥1400 ≥8 ≥40(25℃ KV)
HC80

High carbon steel

(non-treated)

25-32 ≥450 ≥900 ≥11 ≥15(25℃ KV)
HC45

High carbon steel

(two types)

20-45 ≥355 ≥600 ≥16 ≥39(25℃ KV)





5. Detecting Equipments



6Y3840 HC45 Bulldozer Replacement Grader Blade 1



6. Main Dimensions of Installation



Part No.

Length

(mm)

Width

(mm)

Thickness

(mm)

No.of

Holes

Bolt Dia

(inch)

Weight

(kg)

9W4500 1039 330 35 7 1" 88.3
112-2473 824 330 45 5 1" 90.3
7T9127 824 330 35 5 1" 70.1
9W5232 824 330 30 5 1" 59.7
7T4345 810 330 40 5 1" 79.4
7T4346 810 330 40 5 1" 79.4
112-2471 803 330 45 5 1" 88
7T9125 803 330 35 5 1" 67
6Y5540 803 330 30 5 1" 57
113-0321 800 330 60 5 1" 113.9
7T6591 983 280 25 6 7/8" 50.7
7T6936 908 280 25 6 7/8" 46.5
4T2890 1359 254 25 9 3/4" 62.3
6Y3840 1227 254 25 8 3/4" 57.1
9W1878 1229 254 19 8 3/4" 43
107-3484 1215 254 45 8 1" 97.4
6Y5359 900 254 25 6 7/8" 41.2
6Y5374 899 254 35 6 7/8" 56.7
122-9227 894 254 25 6 7/8" 41.3
4T5318 894 254 19 6 7/8" 31.6
109-9093 890 254 19 6 3/4" 30.9
4T2985 802 254 25 5 3/4" 37.9
4T3021 1824 203 19 18 5/8" 50
4T3011 1619 203 19 11 3/4" 44.9
4T2315 1558 203 19 10 3/4" 43
4T3009 1520 203 19 10 3/4" 42.5



7. Our Advantages



* World-class quality

* Factory sale directly with reasonable price

* 35 years' experience in Excavator & Bulldozer spare parts manufacturing

* Flexible payment terms including T/T, L/C and so on

* Fast delivery within 30 days after contract established

* Professional sales team, quality inspection and report, maritime logistics guidance

* After-sale services: video technical support, 24h online support
