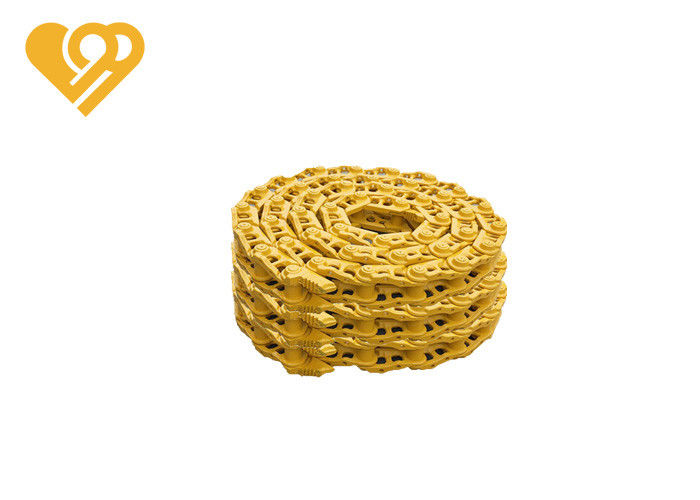

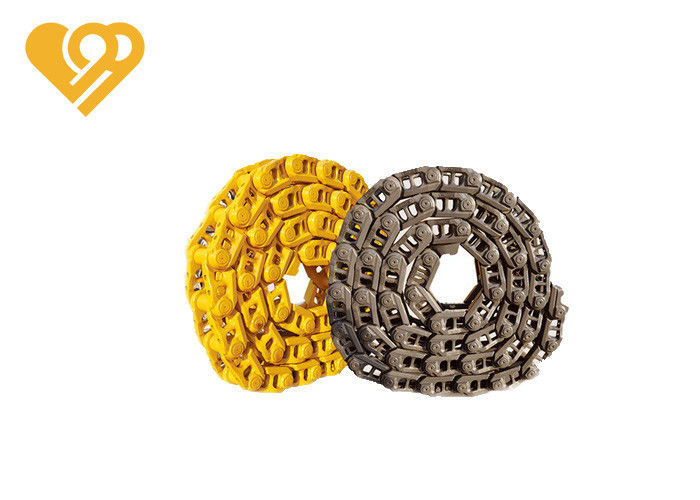

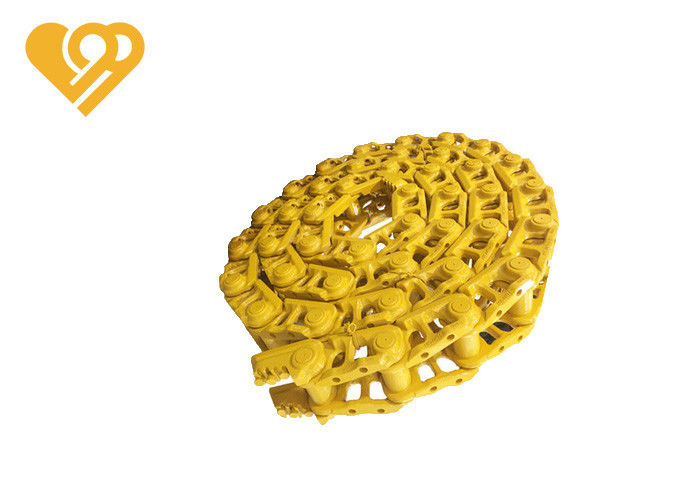

D5K D5G Bulldozer LGP S/L RAILS LB 740 Oil Track Link Assy
Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | YT |
Model Number: | D65 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1PCS |
Price: | Negotiable |
Packaging Details: | Standard Packaging |
Delivery Time: | 7-30 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 10000 PCS/month |
Detail Information |
|||
Material: | 40Mn2 Or 35MnBH Steel | Technique: | Forging/Casting |
---|---|---|---|
Dimension: | Standard | Certifiion: | ISO9001-9002 |
Colour: | Yellow Or Black Or Customer Required | Warranty Time: | 12-18 Months |
Moving Type: | Crawler Excavator & Bulldozer | Pitch: | 101-228 |
Highlight: | dozer undercarriage parts,bulldozer spare parts,Forging D65 Bulldozer Track Chains |
Product Description
We are using advanced machining center, horizontal and vertical CNC machining to execute processes such as machining, drilling, threading and milling to ensure the quality and precision of each component to ensure the accuracy of assembly dimensions. This is to maximize the life span of each component and minimize production cost per hour.
MAIN PARAMETERS
Main Dimensions of Installation | Suitable Models | ||||||||
P | A | B | C | E | F | H | K | L | |
135 | 99 | 72 | 43.2 | 12.5 | 45 | 105 | 75 | 35 | D20/D21 |
154 | 112.4 | 82.4 | 57 | 14.5 | 49.4 | 125.4 | 87 | 40 | D30/D31 |
155.6 | 104.7 | 88.9 | 54.8 | 14.5 | 60.5 | 128.5 | 88 | 39 | D3C |
155.6 | 104.7 | 88.9 | 54.8 | 14.5 | 60.5 | 128.5 | 88 | 39 | D3/D3B/D4B |
160 | 99 | 99 | 56 | 14.5 | 64 | 135 | 83 | 37 | FL6 |
170 | 108 | 108 | 59 | 16.2 | 74 | 154 | 97 | 43 | FL8 |
170 | 124 | 106 | 59 | 16.2 | 74 | 154 | 97 | 43 | FL9 |
171.45 | 108 | 108 | 60.3 | 15 | 70 | 144.8 | 95 | 44 | D4/D4C |
171 | 144.5 | 125.4 | 58.7 | 16.5 | 86.3 | 175.3 | 100 | 46.5 | T100 |
171 | 144.5 | 125.4 | 58.7 | 16.5 | 90.4 | 173.4 | 101.6 | 42.8 | D6/D6B |
171.45 | 108 | 108 | 60.3 | 15 | 68 | 144.8 | 95 | 44 | D4D/D4E/941B/943 |
171.45 | 108 | 108 | 60.3 | 16.5 | 68 | 144.8 | 95 | 44 | D4D/D4E/941B/943 |
175 | 158.4 | 122.4 | 57 | 16.5 | 84.6 | 173.2 | 101.5 | 45 | TY100 |
175 | 158.4 | 122.4 | 57 | 18.5 | 84.6 | 173.2 | 101.5 | 45 | D40/D45/D50/D53 |
175 | 158.4 | 122.4 | 57 | 16.5 | 84.6 | 173.2 | 101.5 | 45 | D40/D41/D45/D50 |
175.5 | 144.5 | 125.4 | 58.7 | 16.5 | 90.6 | 172.6 | 103.2 | 43.5 | D5/D5B |
190 | 160.4 | 124.4 | 62 | 20.5 | 85.6 | 176.4 | 105 | 47 | SD13 |
190 | 160.4 | 124.4 | 62 | 20.5 | 85.6 | 175.6 | 105 | 47 | D55/D57 |
190 | 139.7 | 139.7 | 63.5 | 19.5 | 88 | 186 | 118 | 56.5 | TD15C |
190 | 160.4 | 124.4 | 62 | 20.5 | 84.8 | 175.6 | 119 | 47 | D61 |
The models above are just for reference, we can't list all models here.we can supply more products as your requirement. Please feel free to send us your inquiry or email if you have any requirements.
* World-class quality
* Factory sale directly with reasonable price
* 35 years' experience in Excavator & Bulldozer spare parts manufacturing
* Flexible payment terms including T/T, L/C and so on
* Fast delivery within 30 days after contract established
* Professional sales team, quality inspection and report, maritime logistics guidance
* After-sale services: video technical support, 24h online support
