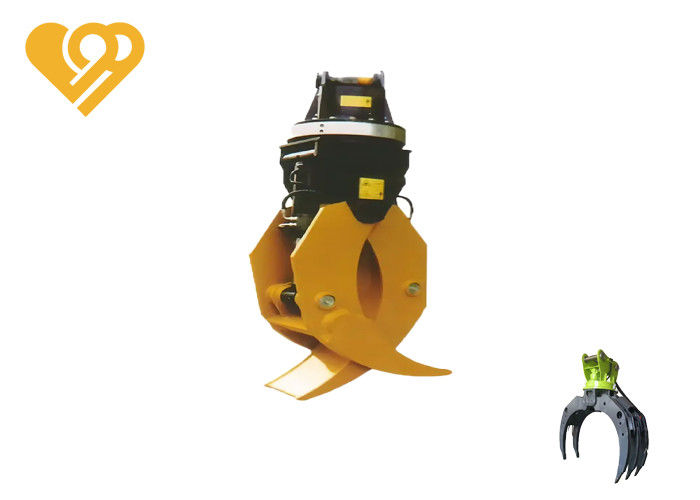

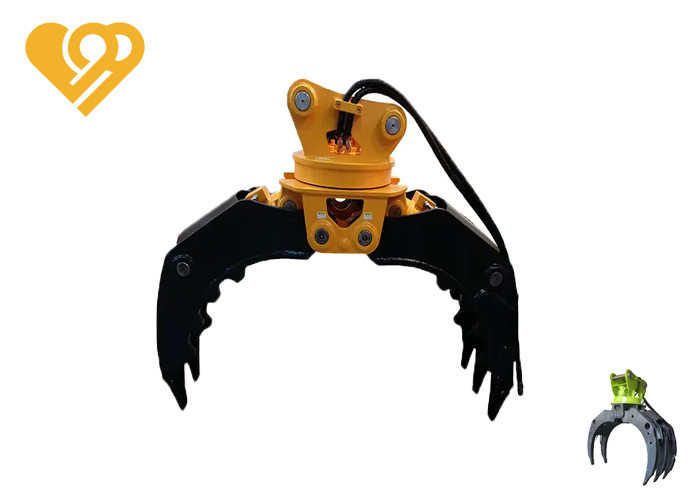

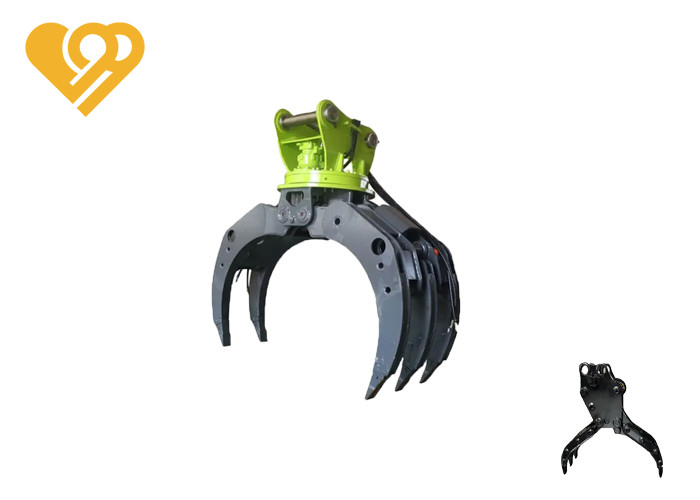

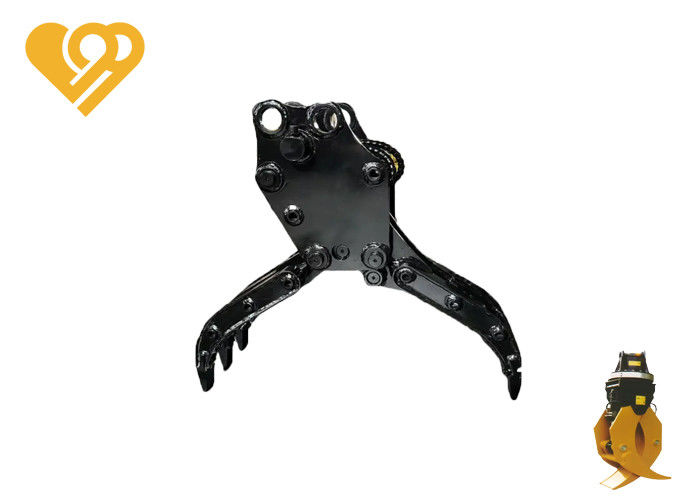

Heavy Equipment Hydraulic Attachment Q345B Alloy Steel Grapple Buckets for Excavators
| Material: | Q345B Alloy Steel | Colour: | Yellow Or Black Or Customer Required |
| Warranty Time: | 12 Months | Place of Origin: | Fujian, China |
| Brand Name: | YT | OEM: | Available |
| Dimension: | Standard | Finish: | Smooth |
| High Light: | excavator rock grapple,hydraulic breaker hammer |
||
Heavy Equipment Hydraulic Attachment Q345B Alloy Steel Grapple Buckets for Excavators
1. What is Hydraulic Grapple?
The Hydraulic Grapple is an efficient tool for managing scrap metal, iron, minerals, waste, or other bulky, irregular items, effectively taking the place of manual labor across diverse settings. Classified as a hydraulic mechanical component, it consists of a hydraulic actuator, gripping claw (jaw), connecting rods, ear plates, protective covers, bucket teeth, and tooth blocks, among other components. The primary operational component is the hydraulic cylinder.
2. Hydraulic Grapple Advantages / Features
* Low overall height for a limited area.
* Robust structure & optimum weight.
* Decreased cycle time thereby reducing operational cost.
* Maximized Gripping capacity.
* Special heat-treatment & long working life.
* Hose guard, cylinder high-pressure hose installed inside.
* Shock-absorption-Cushion Cylinder.
* Full 360-degree hydraulic rotation.
3. How to Choose the Right Model?
Orange Peel Grapple Main Parameters
| egory | Unit | YT10-1 | YT10-2 | YT20-1 | YT30-1 |
| Open Hight (A) | mm | 890 | 1110 | 1390 | 1600 |
| Close Hight (B) | mm | 1060 | 1325 | 1660 | 1910 |
| Close width (C) | mm | 970 | 1210 | 1510 | 1740 |
| Open width (D) | mm | 1260 | 1580 | 1975 | 2275 |
| Cylinder thrust | ton | 4 | 6.5 | 10.5 | 13 |
| Oil pressure | Mpa | 18-21 | 21-25 | 21-25 | 21-25 |
| Volum | m3 | 0.4 | 0.6 | 0.8 | 1 |
| Suitable Excavator | ton | 5-9 | 10-16 | 17-23 | 24-30 |
| Weight | kg | 350-400 | 700-800 | 950-1100 | 1500-1700 |
The Models Above Are Just For Reference, Many Models We Can't List Here. We Can Supply More Products As Your Requirement. Please Feel Free To Send Us Your Inquiry Or Email If You Have Any Requirements.
4. Our Advantages
* World-class quality
* Factory sale directly with reasonable price
* Flexible payment terms including T/T, L/C and so on
* Fast delivery within 30 days after contract established
* Professional sales team, quality inspection, and report, maritime logistics guidance
* After-sale services: video technical support, 24h online support
