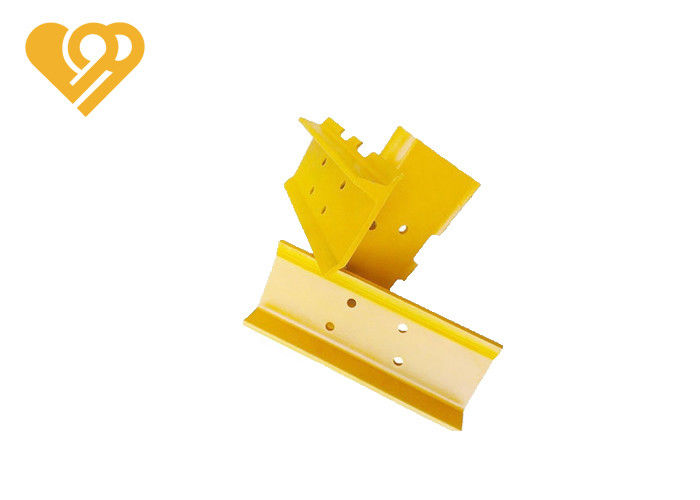

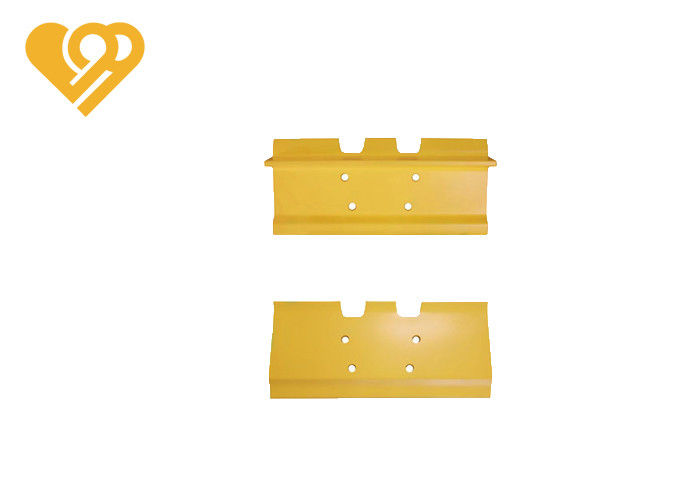

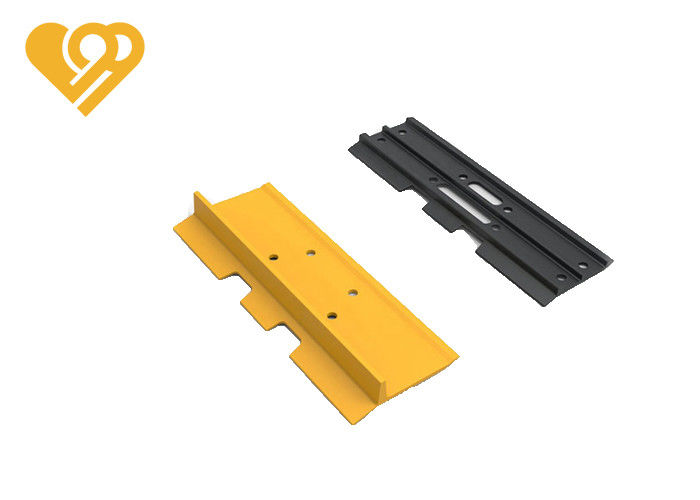

HRC 40 25MnB Steel Single Lug Bulldozer Track Shoe Plate
| Material: | 25MnB Steel | Technique: | Forging/Casting |
| Quality: | Heat Treatment HRC 40-55 | Description: | Track Shoe Plate |
| Colour: | Yellow Or Black Or Customer Required | Stock: | Yes |
| MOQ: | 1 PCS | Package: | Standard Export Packaging |
| Shipment: | By Air, Ship And Express | ||
| High Light: | HRC 40 Track Shoe Plate,25MnB Steel Track Shoe Plate,Single Lug bulldozer track shoes |
||
25MnB Steel Single Lug Track Shoe Plate For Bulldozer
1. Track shoe Advantages
* All the track shoes are subject to through hardening processes with spray quenching technique and tempering processes, which are suitable for pitch range from 101mm to 260mm track link.
* We have different specifiions of track shoes from standard type to high wear reisistan type that can meet all customers's different need.
* The quality control of our track shoes is strictly performed from sourcing raw materials to different machining procession till final packing.
* We can make casting and forging track shoe which was used in mine and other special working conditions.
* The track shoe was made of special alloy boron steel material and after properly heat treatment, it can play under bend and high-wear effect in any working conditions.
2. Main Dimensions of Track Shoe
Main Parameters
| Suitable Models | Main Dimensions of Installation | |||||||
| A | B | C | E | M | N | H | L | |
| D135A/D155/D150/TY330/DGY70 | 219.8 | 169 | 76.2 | φ24.5 | 17 | 97 | 268 | 560 |
| D8K/D8H | 201.6 | 169.8 | 76.2 | φ23.5 | 17 | 97 | 268 | 560 |
| D80/D85/TY220 | 184 | 146 | 76.2 | φ20.5 | 14.3 | 86.3 | 253 | 560 |
| D7G | 184 | 146 | 76.2 | φ19.5 | 14.3 | 86.3 | 253 | 610 |
| D7H/572E/572F/572G | 205.5 | 149.5 | 70 | φ20.5 | 14.3 | 86.3 | 253 | 610 |
| D60A/D60E | 178.3 | 138.3 | 72.2 | φ19.5 | 14 | 74 | 238 | 510 |
| D65A/D65E | 178.3 | 138.3 | 72.2 | φ19.5 | 14 | 74 | 238 | 560 |
| D6D/D6C | 171.3 | 133.3 | 76.2 | φ19.5 | 14 | 74 | 238 | 560 |
| D65/D6H | 197 | 157 | 70 | φ20.5 | 14 | 74 | 238 | 500 |
| D50/D53/D58E/171G-40 | 158.4 | 122.4 | 57 | φ16.5 | 12 | 62 | 199.6 | 400 |
| D4D | 107.9 | 107.9 | 60.3 | φ16.5 | 12 | 62 | 199.6 | 450 |
| D4H | 144 | 103.8 | 57 | φ17 | 12 | 62 | 199.6 | 510 |
The models above are just for reference, we can't list all models here. We can supply more products as your requirements. Please feel free to send us your inquiry.
3. Producing Processes
4. Our Advantages
* World-class quality
* Factory sale directly with reasonable price
* Flexible payment terms including T/T,L/C and so on
* Fast delivery within 30 days after contract established
* After-sale services:video technical pupport,24h online support
