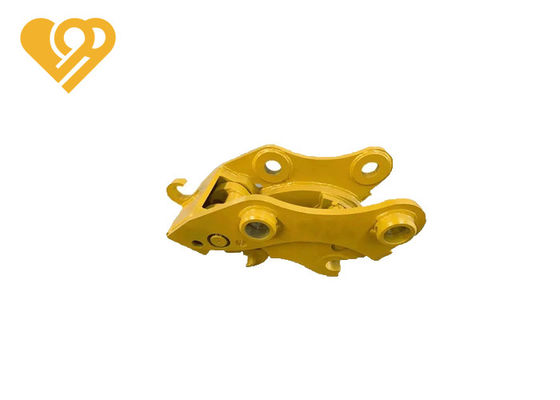

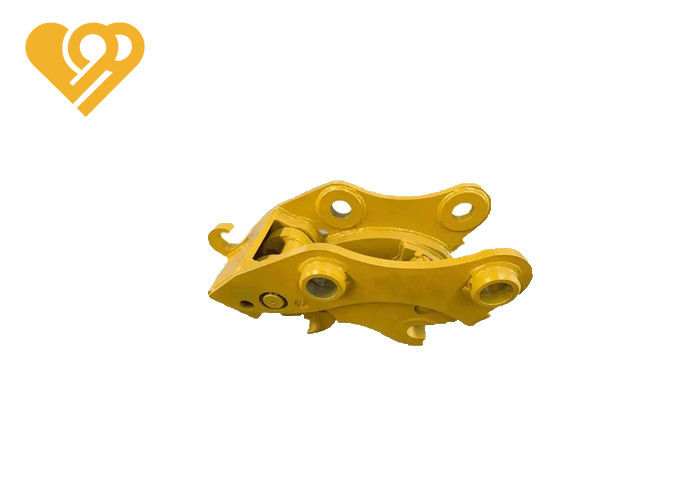

Quick Hitch Coupler for Heavy Equipment Hydraulic Attachment with Secure and Design
| Material: | Q345B Alloy Steel | Colour: | Yellow Or Black Or Customer Required |
| Warranty Time: | 12 Months | Certifiion: | ISO9001-9002 |
| Condition: | New | Dimension: | Standard |
| Payment Terms: | Negotiable | Package: | Standard Export Packaging |
| High Light: | Hydraulic Quick Hitch Coupler Parts,Bulldozer Quick Hitch Coupler Parts,Double Locking Quick Hitch Coupler Parts |
||
Quick Hitch Coupler for Heavy Equipment Hydraulic Attachment with Secure and Design
1. What is a Quick Hitch/Coupler?
The quick hitch can be used on an excavator to exchange accessories (such as breaker, ripper, compactor, grapple, shear,etc) easily and quickly, enlarging the use scope of excavator. Installing a quick hitch to the excavator takes only a few minutes, enhancing the working efficiency of the excavator forever. Installing quick hitch to excavator means turn it into a MULTI tasking, MULTI functional piece of machinery. It makes switching much easier among excavator attachments, increasing machine productivity and efficiency greatly.
2. Quick Hitch/Coupler Advantages / Features
* Quick Coupler allows for fast changes of excavator attachment in minutes,such as a bucket,broken hammer,excavator grab,etc,expanding the use range of excavator.
* Drive with cylinder, no need manual cooperation.
* Safety valve inside, the pin not easy to fall down.
* Can change the accessories without disassembling the pins and axles, thus realize faster installation.
* Ideal use: Suitable for different machines with high material of high hardness
3. How to Choose the Right Model?
YT Quick Hitch Main Parameters
| Model | Unit | YT Mini | YT10-1 | YT10-2 | YT10-3 | YT20-1 | YT20-2 | YT30-1 | YT40-1 | YT50 |
| Unit Weight | Kg | 30-40 | 50-60 | 80-110 | 170-210 | 350-390 | 370-410 | 410-520 | 550-750 | 700-1000 |
| Overall Length (C) | mm | 300-450 | 520-542 | 581-610 | 760 | 920-955 | 950-1000 | 965-1100 | 1005-1150 | 1250-1400 |
| Overall Height (G) | mm | 225-270 | 312 | 318 | 400 | 512 | 512-540 | 585 | 560-615 | 685-780 |
| Overall Width (B) | mm | 150-250 | 260-266 | 265-283 | 351-454 | 450-483 | 445-493 | 543-572 | 602-666 | 650-760 |
|
Forearm Open Width (A) |
mm | 82-180 | 155-172 | 180-205 | 230-317 | 290-345 | 300-350 | 345-425 | 380-480 | 420-520 |
|
Retractable Distance (E) |
mm | 95-200 | 200-300 | 300-350 | 340-440 | 420-510 | 450-530 | 460-560 | 560-650 | 640-700 |
|
Pin Diameter (R) |
mm | 20-40 |
40-45 |
45-55 |
50-70 |
70-90 |
90 | 90-100 | 100-110 | 100-140 |
| Top to Bottom Pin Distance (F) | mm | 170-190 | 200-210 | 205-220 | 240-255 | 300 | 320 | 350-370 | 370-380 | 400-500 |
|
Pinto Pin Center Distance (D) |
mm | 95-220 | 220-275 | 290-350 | 350-400 | 430-480 | 450-505 | 485-530 | 520-630 | 620-750 |
| Working Pressure | Kg/cm2 | 30-380 | 30-380 | 30-380 | 30-380 | 30-380 | 30-380 | 30-380 | 30-380 | 35-380 |
| Oil Flow | L/min | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
| Carrier Weight | Ton | 1-4 | 4-6 | 6-8 | 9-16 | 17-25 | 24-26 | 25-33 | 33-45 | 40-90 |
The Models Above Are Just For Reference, Many Models We Can't List Here. We Can Supply More Products As Your Requirement. Please Feel Free To Send Us Your Inquiry Or Email If You Have Any Requirements.
4. Suitable Excavators
/CASE/DAEWOO/HITACHI/HYDUNDAI/KOMATSU/SAMSUNG// KOBELCO/SANY/ SUMITOMO/ KATO/DOOSAN/ ATLAS/ LOVOL/ SUNWARD/ IHI
5. Our Advantages
* World-Class Quality
* Factory Sale Directly With Reasonable Price
* 35 Years' Experience In Excavator & Bulldozer Spare Parts Manufacturing
* Flexible Payment Terms Including T/T, L/C And So On
* Fast Delivery Within 30 Days After Contract Established
* Professional Sales Team, Quality Inspection, And Report, Maritime Logistics Guidance
* After-Sale Service: Video Technical Support, 24h Online Support
